BAND	GAIN (dBi)	GAIN (dBd)	HALF POWER ANGLE	FRONT TO REAR	FRONT TO BACK
20 meters	7.4	4.9	+/- 34°	25 dB	42 dB
17 meters	8.3	5.5	+/- 32°	25 dB	44 dB
15 meters	8.5	5.7	+/- 29°	20 dB	44 dB
12 meters	8.8	6.2	+/- 28°	15 dB	16.5 dB
10 meters	9.0	6.3	+/- 29°	11 dB	15 dB
6 meters	10.1	7.9 (approx)	+/- 25°	20 dB	N/A

Instructions Manual:

(1.0 Mb)

October 24, 2005: Hurricane Wilma visits K4JRG in Miami.

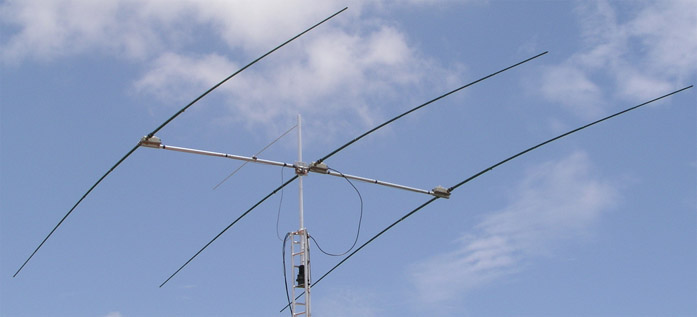

Here's a video clip showing the SteppIR whipping in the 95+ MPH winds. Two of the three elements were removed as precautionary measure. The remaining element was used as functional dipole.

Got a Yaesu DXA rotor? Want to control it from your PC?
See Rotor Control DXA
